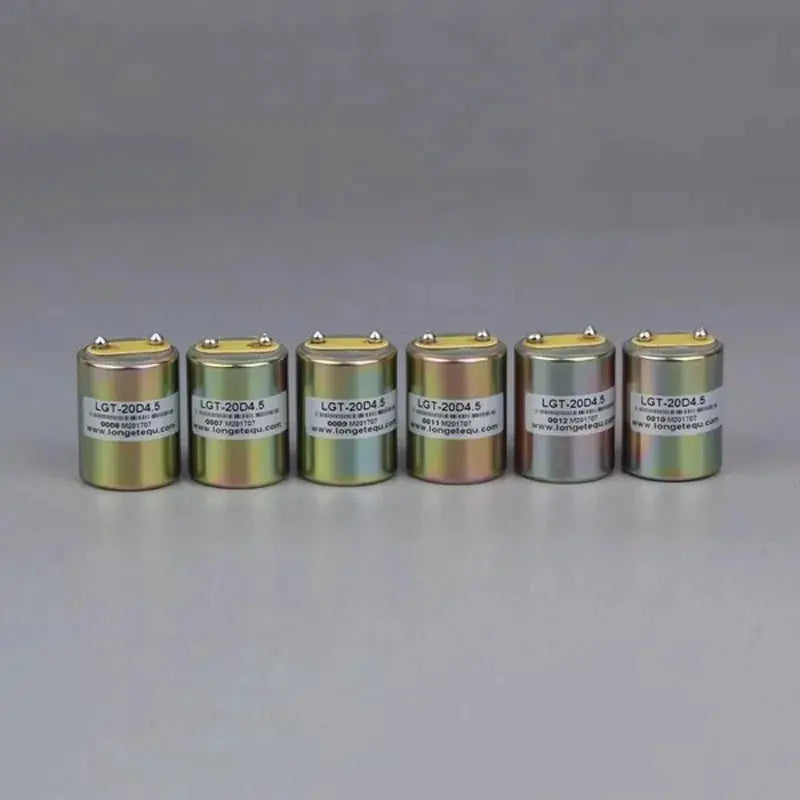

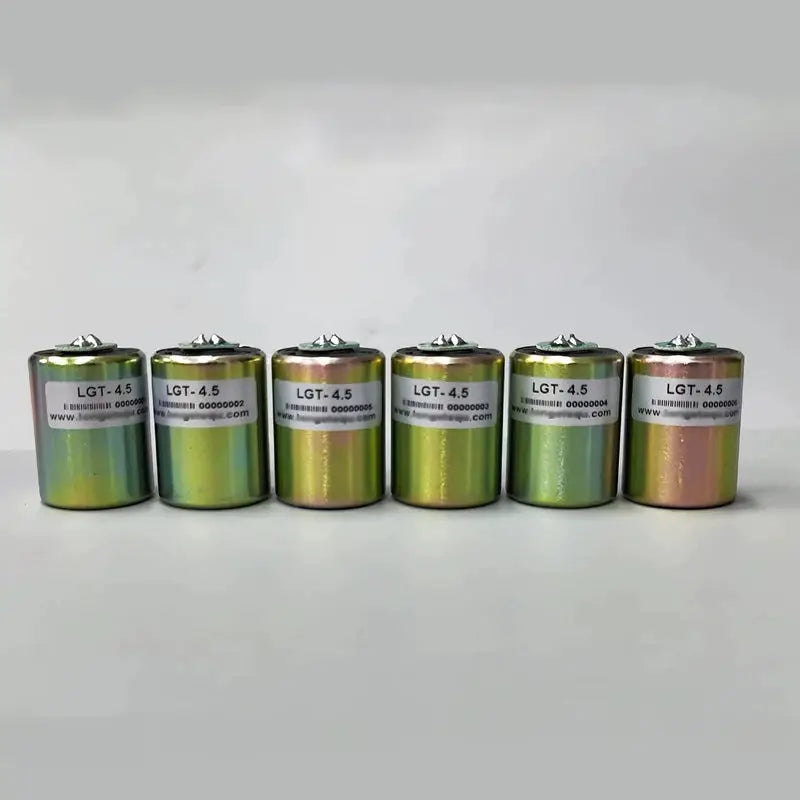

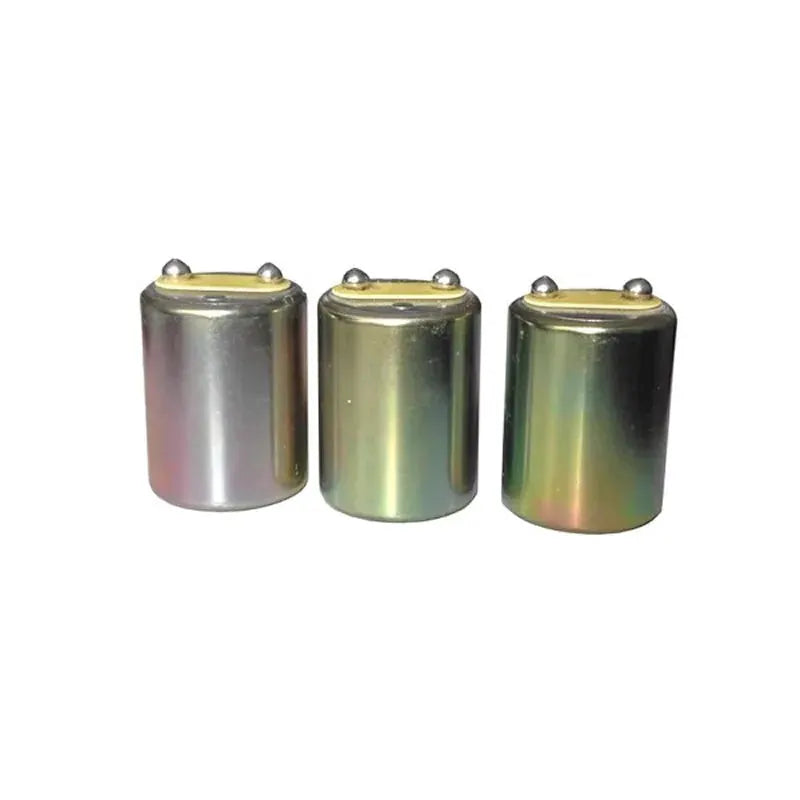

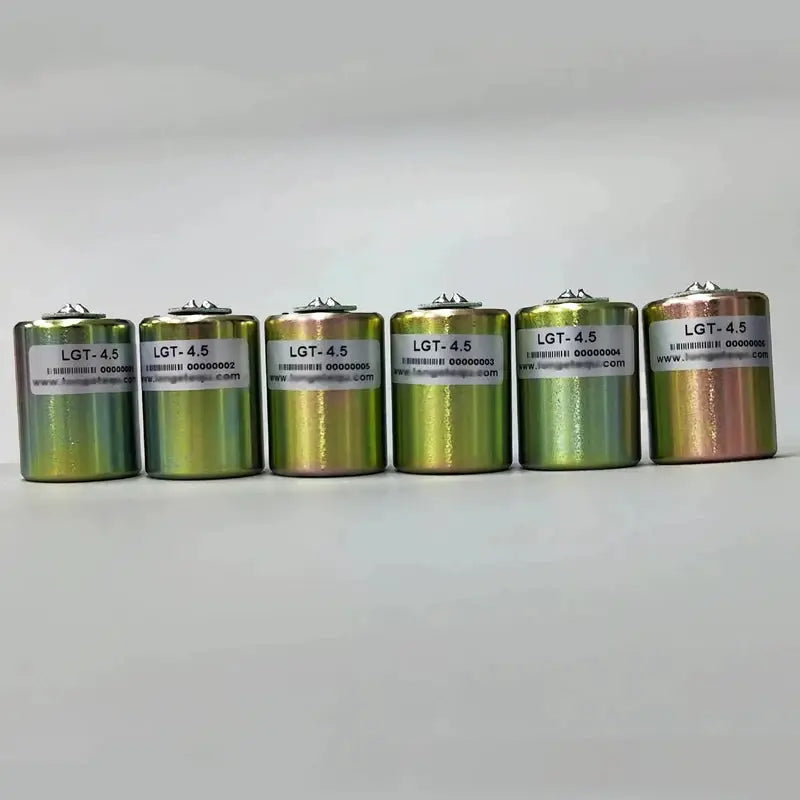

Geophone Sensor | 4.5 HZ Vertical | Earthquake Monitoring | LGT-20D

Why You'll Love It!

The LGT-4.5 vertical geophone sensor provides reliable seismic measurement for earthquake monitoring and geological data acquisition. Rigorous pre-factory testing ensures consistent performance across various specialized exploration environments requiring accurate vibration data.

Key Features

• Natural Frequency: Engineered resonance operates at 4.5 ± 0.5 Hz for vertical detection.
• Open Circuit Sensitivity: High output signal rating of 0.288 ± 5% V/cm/s.
• Environmental Durability: Operational capabilities extend from -40 ℃ to +90 ℃.
• Precision Limit: Total distortion remains low at ≤ 0.3% for clean signals.
• Electrical Resistance: Coil and core resistance stabilized at 375 ± 5% Ohms.
• Core Size: Internal physical structure measures 25.4 mm diameter by 33.5 mm height.
• Suspension Load: Designed with a precise suspension mass of 11.3 ± 5 grams.

Get Yours Today!

Elevate your engineering capabilities with calibrated components and secure great value when you order from Pricelows™ now.
