Water Level Sensor | Horizontal Side Mount | 220V DC 1A | Standard

Why You'll Love It!

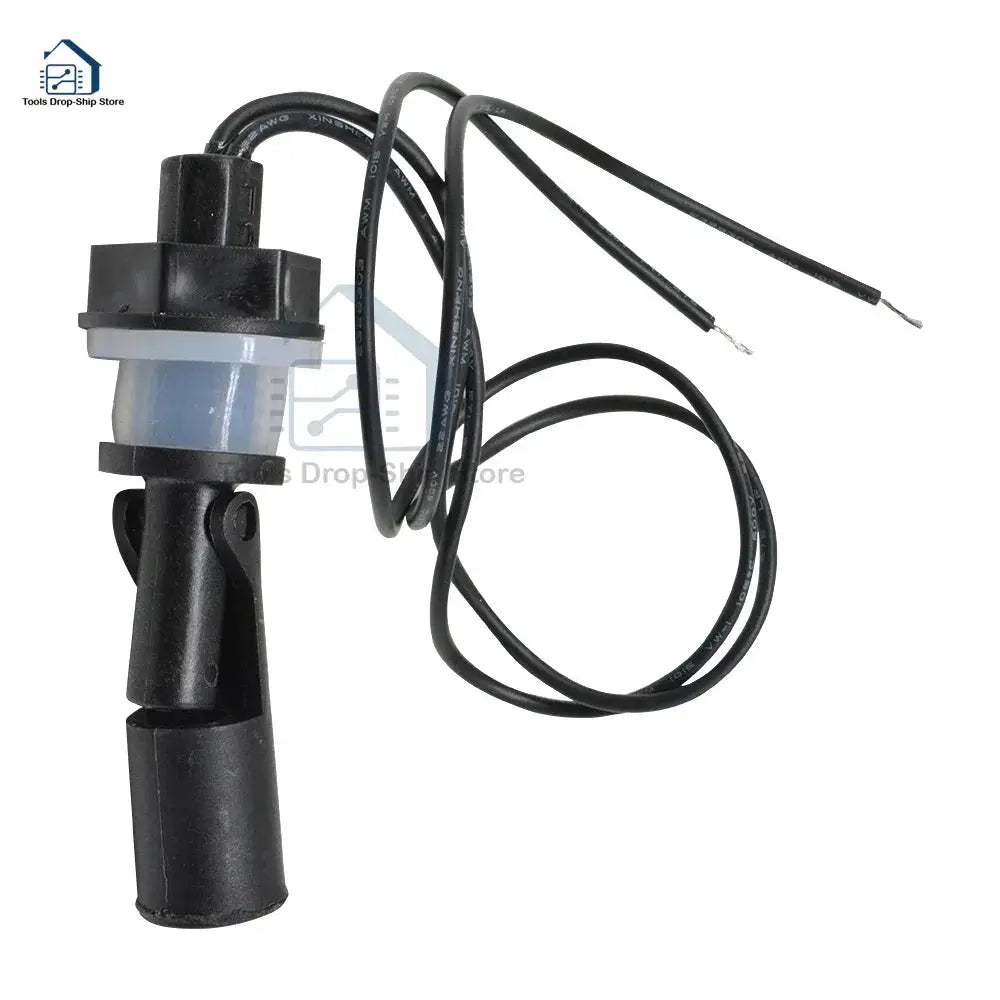

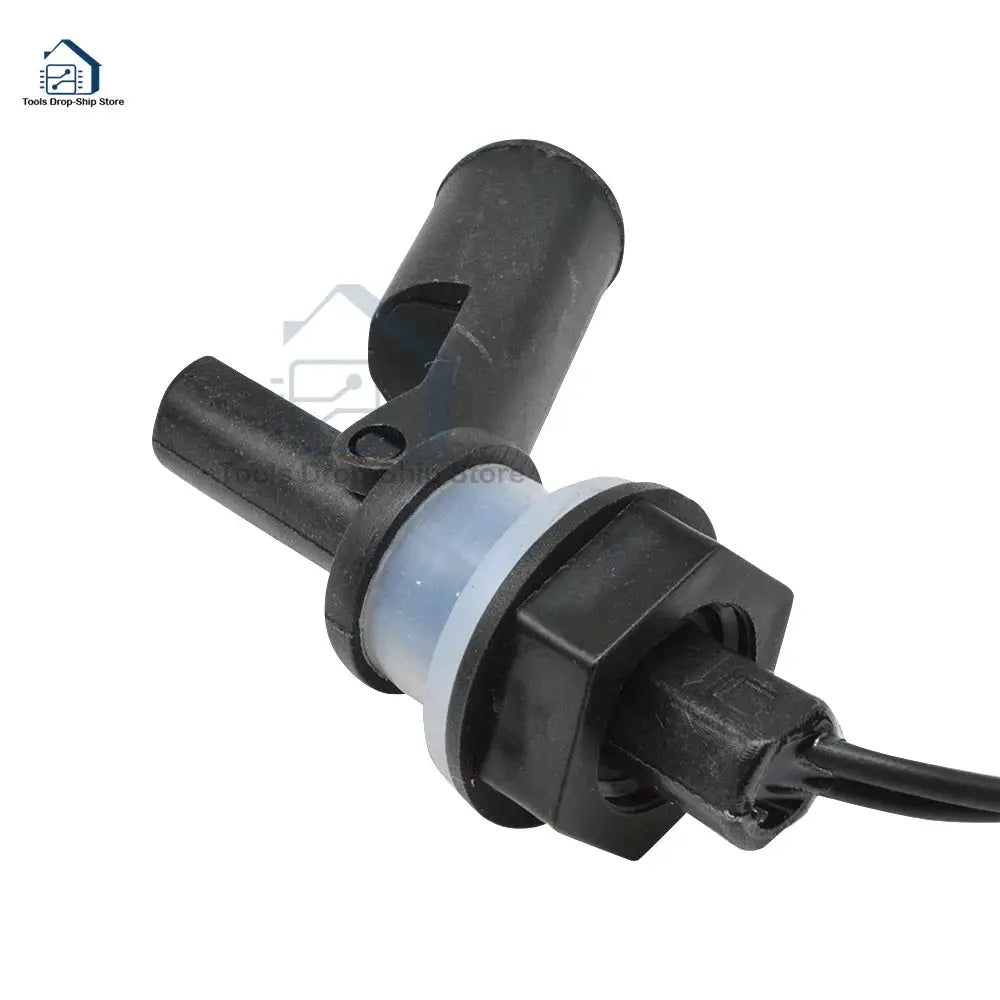

The Water Level Sensor is a horizontal side-mount float switch that detects liquid levels in tanks and can trigger pumps, indicators, or alarms. Ideal for aquariums, hydroponics, gardening, and other liquid-control projects, it delivers a simple, compact solution that doesn’t require a separate power supply for the sensing element.

Key Features

• Material: PP housing designed to withstand liquids and moisture.
• Mounting style: Horizontal side-mount float sensor switch for easy installation along a tank wall.
• Working principle: Combines a reed switch and a floating ball to open or close contacts as liquid level rises or falls.
• Switching voltage (Max): 110VDC.
• Switching current (Max): 0.5A.
• Carry current (Max): 1A.
• Breakdown voltage (Max): 220VDC.
• Contract rating: 10W.
• Temperature range: -10 to +60°C.
• Certifications: CE certified.
• Mercury-free: Contains no mercury.
• Applications: Use in hydroponics, saltwater and freshwater tanks, aquariums, fish tanks, pet bowls, filtration, and heating systems.
• Package contents: 1 x Liquid Float Switch.

Get Yours Today!

Get yours today at Pricelows™—a reliable, budget-friendly solution for accurate liquid level control.
